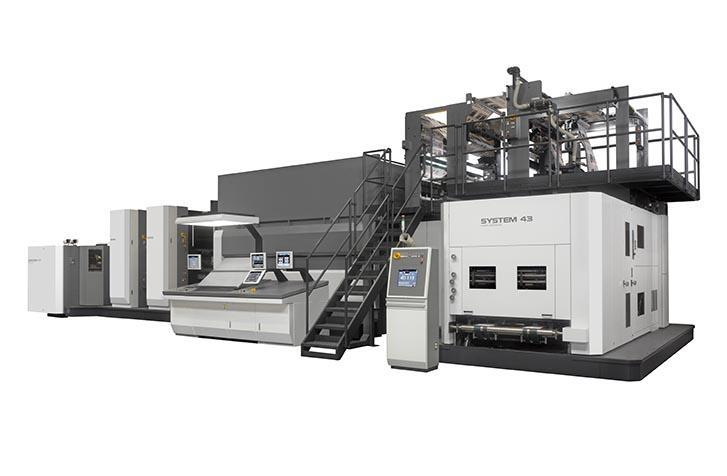

SYSTEM 43

384.85mm Cut-Off Thirty-two Page Web Offset Press
First slide
Previous Next

Features

  • Proven performance in web publishing applications.
  • Configured mainly as one or two-color web, the System 43 is a tough, smart machine that handles paper smoothly even in adverse conditions, such as in printing comics, weeklies and dictionaries.
  • May be configured with a double folder to produce B5 x 8P, B5 x 16P, B5 x 32P, B6 x 16P, and B6 x 32P signatures.
  • The System 43 can be equipped with the KHS-AI (Advanced Interface), which is very effective in cutting paper waste and shortening makeready time even when the press is configured as a one or two-color web.
Model SYSTEM 43
Cutoff mm 384.85(769.7*1)
Max. web width mm 1,095
Max. printing area *(length×width) mm 760.7×1,095
Plate size(length×width) mm 794×1,110
Paper stock range gsm 28-110

* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
* Maximum printing area depends on theoretical values for single colors.
*1:Plate cylinder circumferential length.
