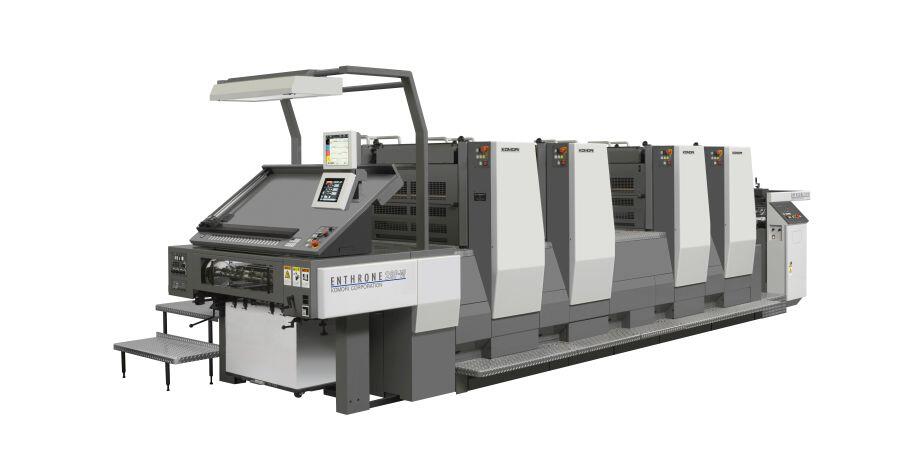

The Enthrone embodies the high print quality and leading-edge technologies that have become synonymous with Komori. And with its stepless operator-side design and small footprint, the Enthrone fits easily in any installation space.

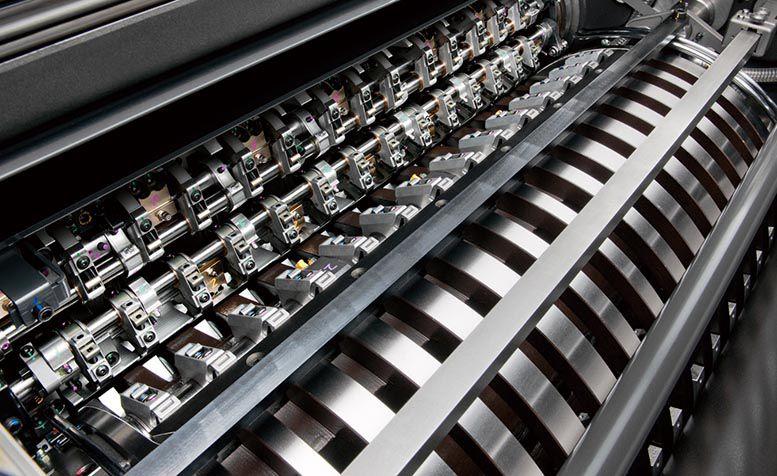

The highly specified Enthrone is configured with double-size impression and transfer cylinders to ensure consistent performance on short runs of a diverse work mix....
Accommodating sheet thicknesses of 0.04 mm to 0.6 mm, the press dramatically shortens the time required for changeover between light and heavy stocks because no transfer cylinder gripper pad adjustment is necessary. The Enthrone, in short, enables working efficiencies that result in higher margins and business growth.
*Sheet thickness range for perfectors: 0.04 ~ 0.45 mm in straight mode, 0.04 ~ 0.3 mm in perfecting mode.
| Model | ENTHRONE 26P | ENTHRONE 29P | |
|---|---|---|---|
| Number of colors | 4,5 | 4,5 | |
| Max. sheet size | mm | 480×660 | 530×750 |
| Max. printing area | mm | Single-sided:470×650 Double-sided:460×650 |
Single-sided:520×740(520×736 option) Double-sided:510×740(510×736 option) |
| Plate size | mm | 560×670 | 605×760(605×745 option) |
| Feeder pile height | mm | 800 | 800 |
| Delivery pile height | mm | 600 | 600 |
* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
* Margin for vacuum wheels on back side of sheet required for double-sided printing.
