LITHRONE GX40 advance

40" Convertible Perfecting Offset Printing Press

First slide
First slide
First slide
First slide
Previous Next
Read More Example

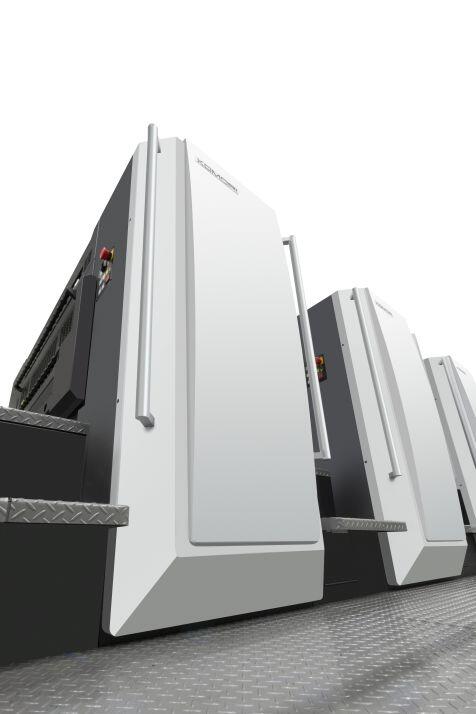

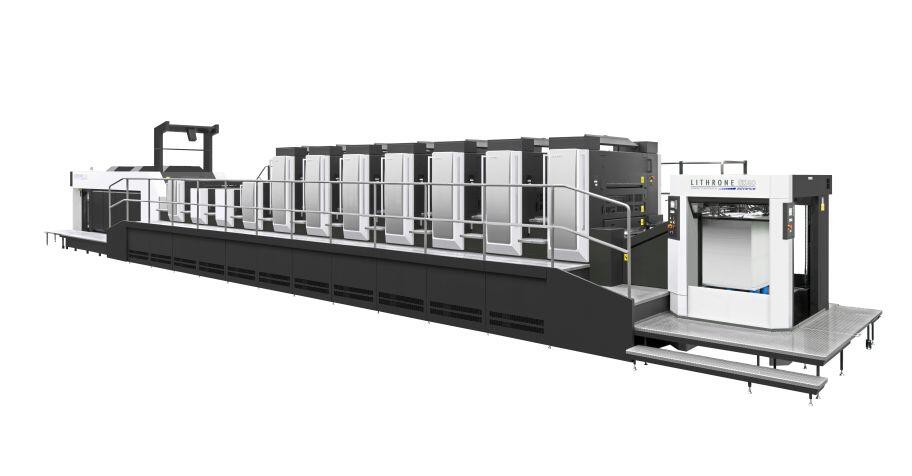

Product image for illustration purposes only. Actual product may vary.

Concept

Lithrone GX40P advance EX Edition: New benchmarks for productivity and sustainability

Boasting a world-class return on investment*1, the Lithrone GX/G advance series is being introduced globally. To achieve further productivity growth and sustainable management, Komori has developed the Lithrone GX/G advance Series equipped with revolutionary new functions. By means of three eco-conscious functions*2, the press reduces power consumption by up to 18%*3 while printing and realizes stable feeder and delivery operation to cut wastepaper usage, thus both achieving reduced greenhouse gas emissions and high productivity. Leveraging the latest printing technology, this latest development from Komori reduces energy costs and enhances operator efficiency, propelling businesses to new heights. The Lithrone GX40P advance's perfecting mechanism utilizes Komori's unique three double-size cylinder arrangement. The impression cylinder, transfer cylinder, and perfecting cylinder are each double-size to avoid stress on the paper. Simplified and highly rigid, use of the new perfecting mechanism ensures high-speed, stable two-sided printing at speeds of 18,000 sph, displaying excellent heavy stock compatibility with both single- and double-sided printing.

*1 ROI (Return on Investment)
*2 Smart Inking Flow, DC blower, and e-Mist
*3 Effect of Smart Inking Flow and DC blower together

Features

  • Komori's flagship machine, meeting the diverse needs ofcustomers at a very high level.
  • In addition to extremely stable printing at the 18,000 sheets per hour maximum printing speed, even with heavy stock, the Lithrone GX40 advance delivers both significantly improved print quality and enhanced agility for color changeovers.
  • Extraordinary productivity due to automatic non-stop devices* for long runs at high speed, control systems, automatic mechanisms and new cleaning/washing systems.
  • KHS-AI, the core system for meeting diverse printing needs, is combined with new features that provide powerful support for package printing, resulting in immense power for high print quality and high productivity.
  • Updated KID (Komori Information Display) improves operator efficiency.
  • The energy-conserving and space-saving design, along with reduced heat emissions, benefits the environment.
  • *Optional specification
Model LITHRONE GX40 advance
Number of colors 5-8
Max. sheet size mm 750×1,050
Max. printing area mm 740×1,040
Plate size mm 811×1,055
Feeder pile height mm 1,600（plinth: 450)
Delivery pile height mm 1,600（plinth: 450)

*Maximum printing varies according to printing conditions.
*Performance and numbers may differ from specifications herein. Specifications my also be modified for product improvements
