H+H KL112.1

Folding machine for ultra-small size
First slide
First slide
First slide
First slide
Previous Next

Concept

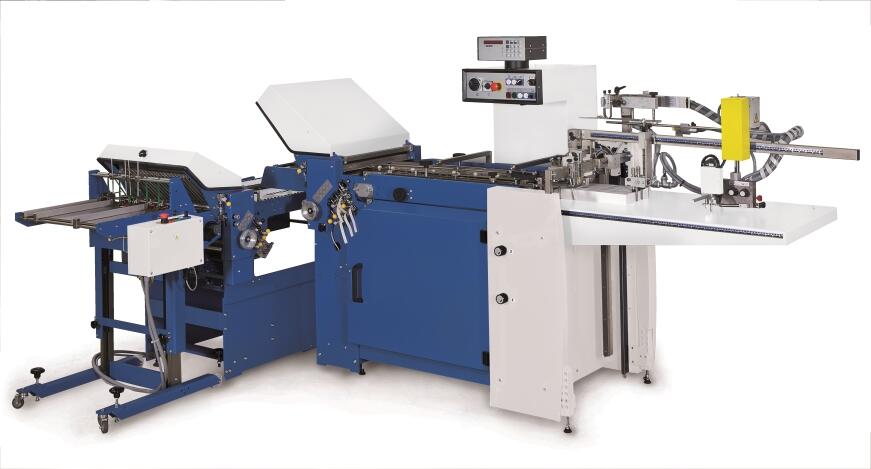

A paper folding machine that achieves high accuracy through high operational speed and robust construction

Until now, Komori has worked to expand its peripheral equipment lineup under the PESP (Print Engineering Service Provider) business strategy. MBO's high-precision, high-productivity post-processing product group will be expanded in Komori's sales organization, especially in Asia including Japan, and under the concept of "Connected Automation", Komori's IoT solution By linking "KP-Connect" and MBO's "DataManager 4.0", not only the printing process but also post-processing can be linked to improve productivity and realize automation and labor-saving solutions.

Features

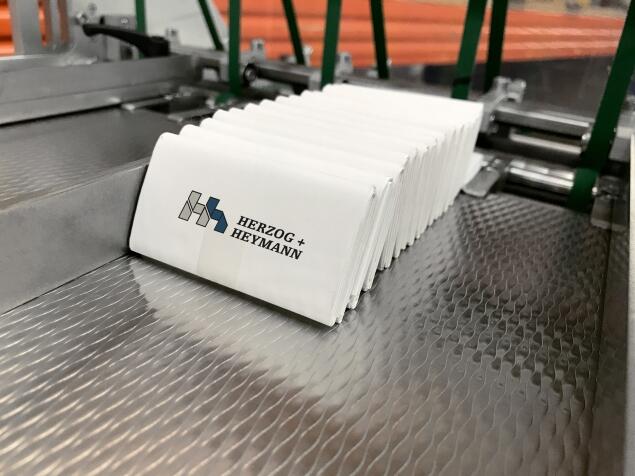

  • A paper folding machine for the production of small products, special folding, and multi-folding of thin paper, especially suitable for the production of instruction manuals for medicines and cosmetics.
  • Achieves a maximum folding width of 18 mm with a folding roller with a diameter of 26 mm

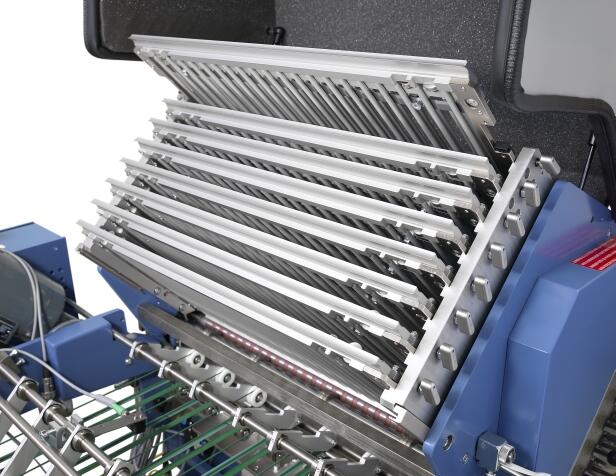

  • Combined with up to 24 buckles per unit, large sheets can be folded into smaller signatures?
  • Adhesive application and taping options are also available.
Model name 350mm specification 450mm specification 520mm specification
Maximum paper size mm

Stream feeder: 350x550

Stream Feeder: 450x650

Pile feeder: 450x1,000

Stream Feeder: 520x650

Pile feeder: 520x1,000

Round feeder: 520x1,000
Minimum paper size mm Stream feeder: 40x50

Stream feeder: 40x50

Pile feeder: 80x105

Stream feeder: 40x50

Pile feeder: 80x105

Round feeder: 150x180
Minimum folding size ?? 18
speed m/min 150
Number of buckles that can be loaded Sheet ??24

*Performance and numerical values ??may vary depending on specifications. In addition, the specification values ??may be changed for improvement.
