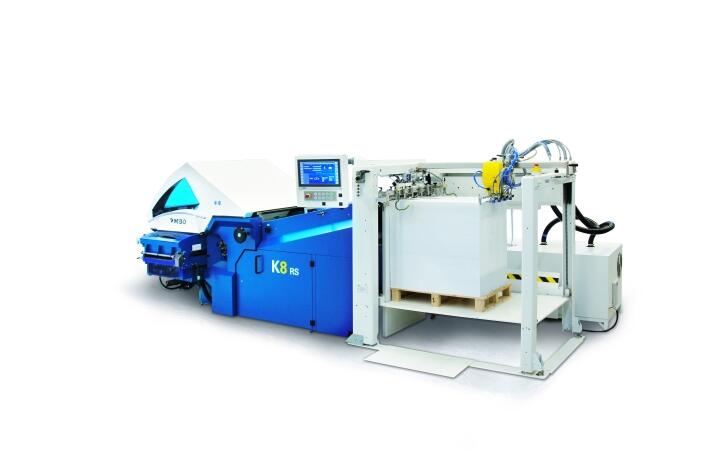

A paper folding machine that achieves high accuracy through high operational speed and robust construction

Until now, Komori has worked to expand its peripheral equipment lineup under the PESP (Print Engineering Service Provider) business strategy. MBO's high-precision, high-productivity post-processing product group will be expanded in Komori's sales organization, especially in Asia including Japan, and under the concept of "Connected Automation", Komori's IoT solution By linking "KP-Connect" and MBO's "DataManager 4.0", not only the printing process but also post-processing can be linked to improve productivity and realize automation and labor-saving solutions.

• Auto specification flagship model
• Tape speed of 275m/min is the fastest in the industry
• High-precision support for medium to large-lot products and complex signatures
• Pallet feeder specifications

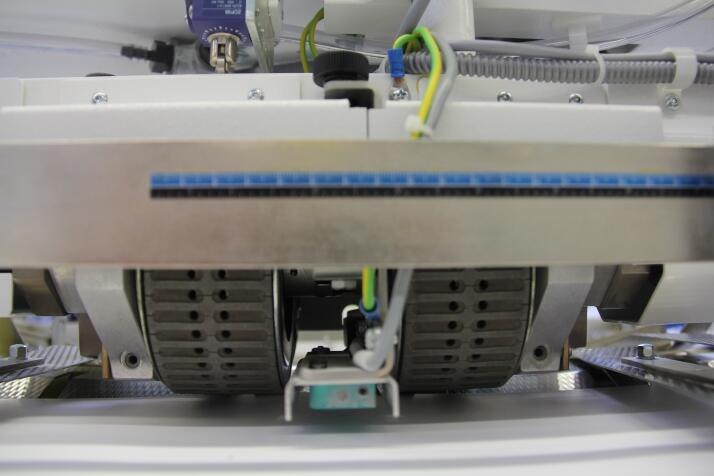

• Equipped with slitter shaft cassette pull-out type as standard. Slitter adjustment and replacement can be done quickly and accurately outside the machine, and can be operated by one person.
• The KTL configuration has a buckle plate after the first fold knife so that additional creases can be made parallel to the knife crease
• Cross-fold knife section (openable) and three-fold knife section (sliding type) provide free access to fold rollers and slitter shafts for easy paper adjustment, cleaning, and removal of parts　
• Invalid sheet detection/ejection device detects and ejects double or misfolded sheets without interrupting the production flow during operation
• The horizontal movement of the knife position achieves a crossfold knife frequency of 40,000 cycles/h by driving an in-house air cylinder. Signatures with small sheet gaps can be processed at higher speeds　
• KTZ* covers two machine ranges in one. Knife cross fold and third fold (excluding cross knife) can be easily rotated 180 degrees from left to right

*Option
*Performance and numerical values may vary depending on specifications. In addition, the specification values may be changed for improvement.
